Coup De Grâce Short Action Barreled Action

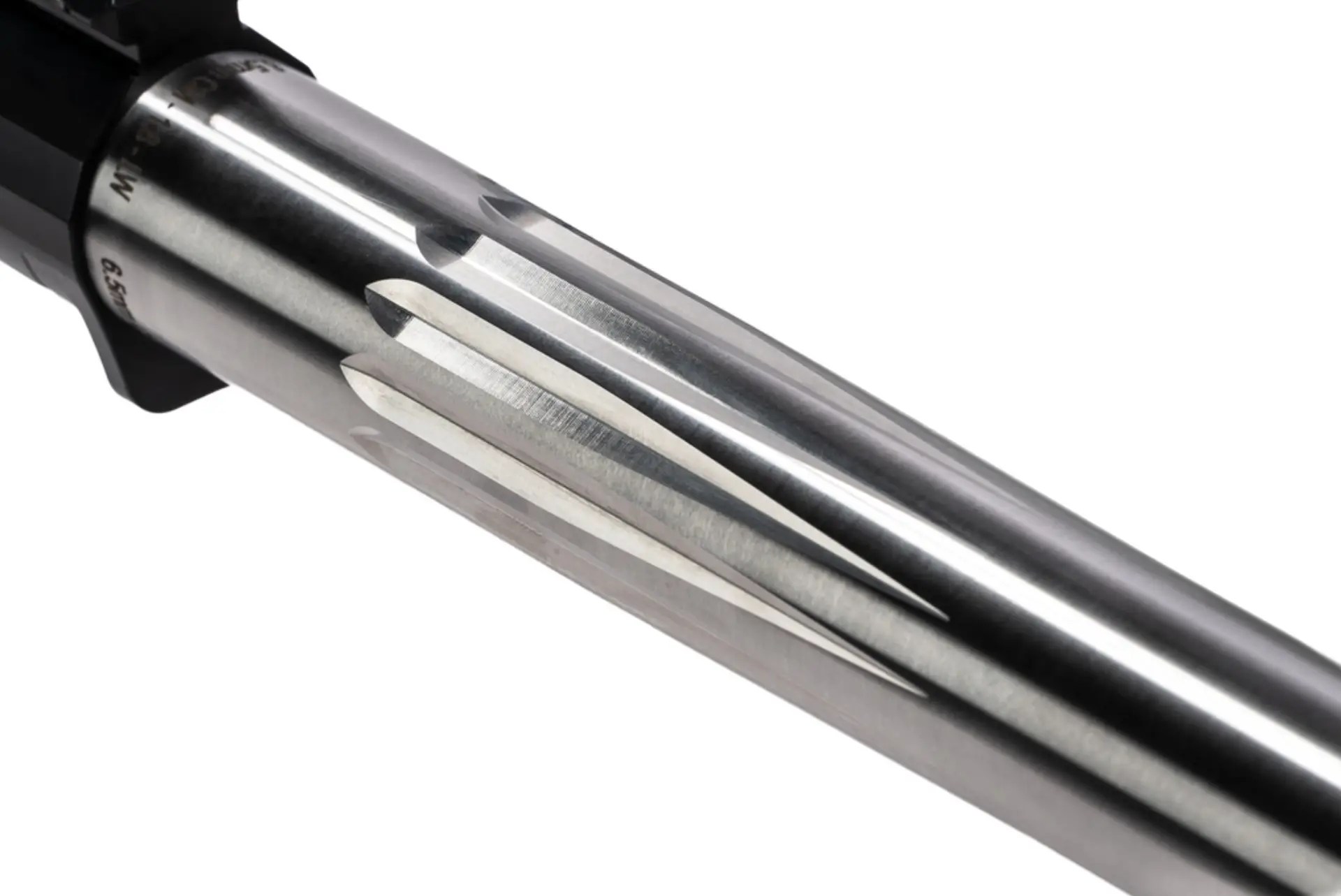

The Coup De Grâce Short Action Barreled Action combines a precision-oriented short-action receiver with a Lothar Walther 26″ Heavy Tapered barrel, making it an excellent foundation for a custom precision rifle. Available in both right-hand and left-hand configurations, the barreled action can be configured with either a pivoting or fixed bolt handle and a choice of red or black bolt knobs in Hourglass, Classic, or Ball styles.

The action is available in a variety of popular precision and competition cartridges, with each caliber matched to a dedicated barrel twist rate. A 20 MOA Picatinny rail is included for mounting long-range optics, while the 5/8″-24 muzzle thread provides compatibility with a wide range of compatible muzzle devices.

Available Calibers & Twist Rates

• .223 Wylde — 1:7″ twist
• 6mm ARC — 1:7″ twist
• 6mm Dasher — 1:7″ twist
• 6mm GT — 1:7″ twist
• 6mm Creedmoor — 1:7″ twist
• 25 Creedmoor — 1:7″ twist
• 6.5mm Creedmoor — 1:8″ twist
• .380 WIN — 1:9″ twist

Configuration Options

• Right-hand or left-hand action
• Pivoting or fixed bolt handle
• Red or black bolt knob

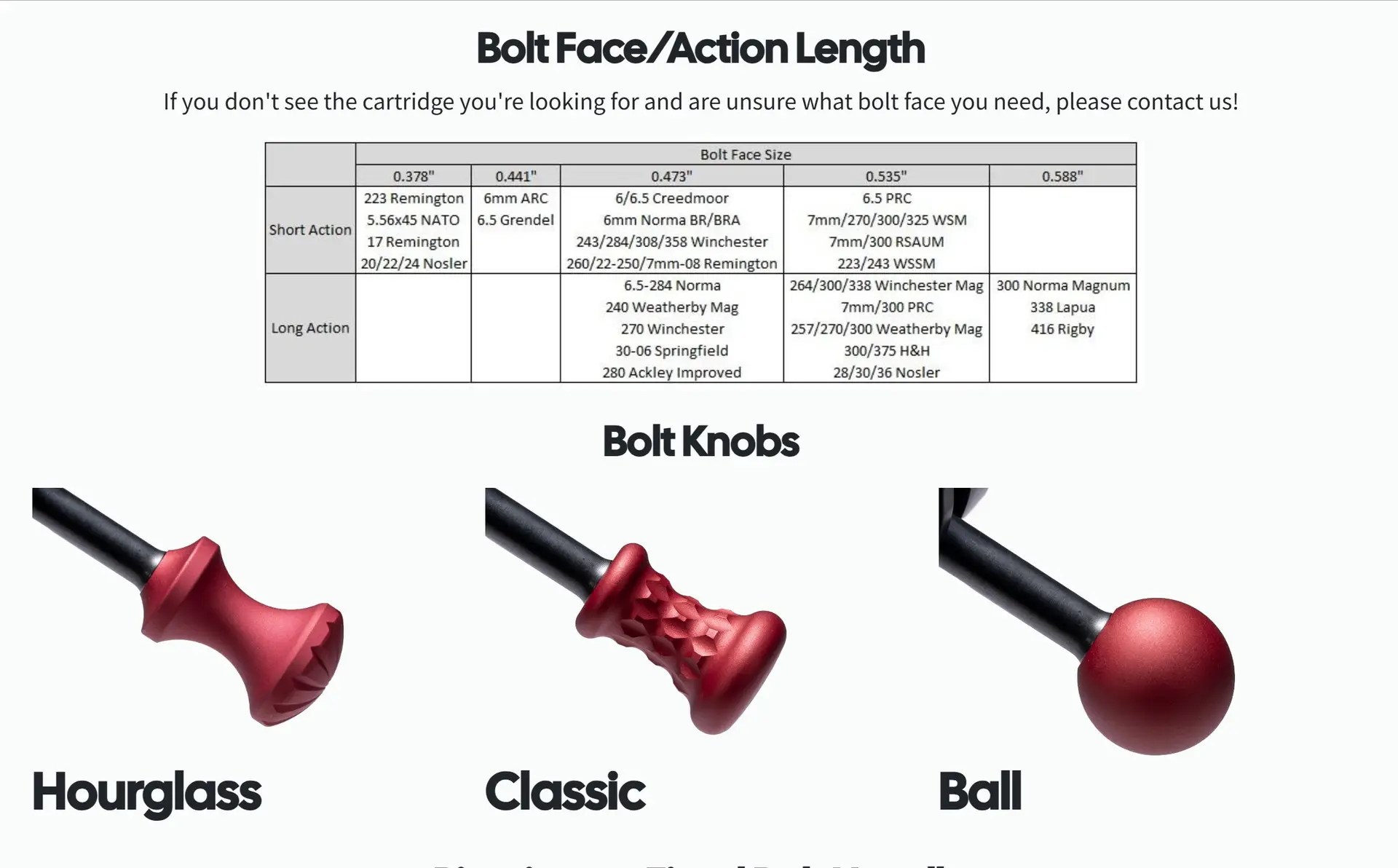

• Hourglass, Classic, or Ball bolt knob
• Lothar Walther 26″ Heavy Tapered barrel

Specifications

• Action: Coup De Grâce Short Action

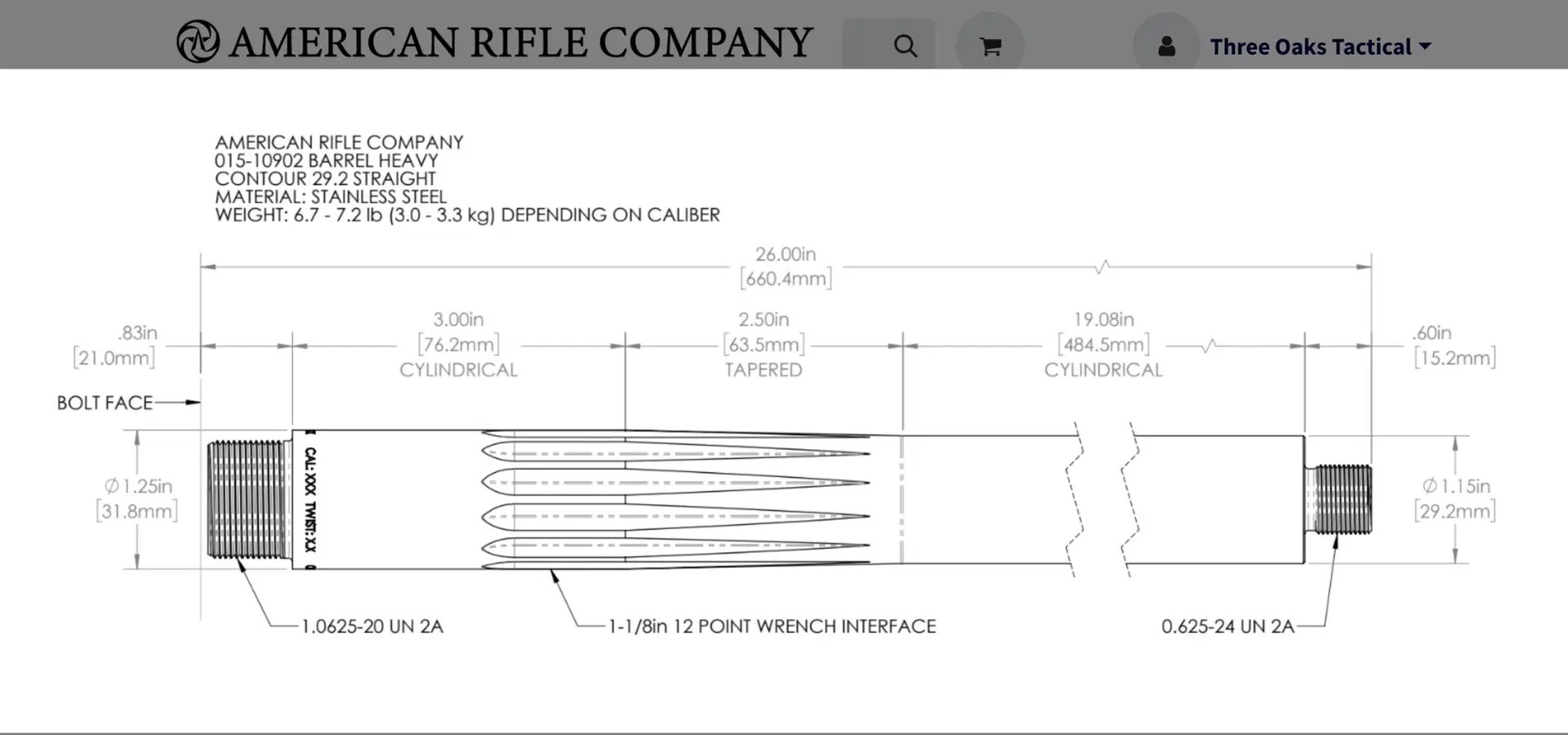

• Barrel: Lothar Walther, 26″ Heavy Tapered
• Barreled Action Weight: 9.5 lbs.
• Muzzle Thread: 5/8″-24
• Optic Rail: 20 MOA Picatinny
• Available Calibers: .223 Wylde, 6mm ARC, 6mm Dasher, 6mm GT, 6mm Creedmoor, 25 Creedmoor, 6.5mm Creedmoor, .380 WIN

 Bolt

• Tool-less bolt assembly
• 3 lug interchangeable floating bolt heads 0.378″ to 0.588″
• 70° bolt rotation
• Controlled-round-feed extractor with ability to push/single feed
• Pivoting handle primary extraction
• Fixed handle option for conventional cam extraction
• Dual cocking cams
• Toroidal bolt-lug bearing surfaces
• Standard 5/16-24 UNF 2A bolt knob thread
• Black nitride finish

Receiver

• Remington 700 footprint
• .1875″  thick Integral recoil lug
• Integral 20 or 30 MOA Picatinny rail
• Center of bore to top of Picatinny rail 1.036″

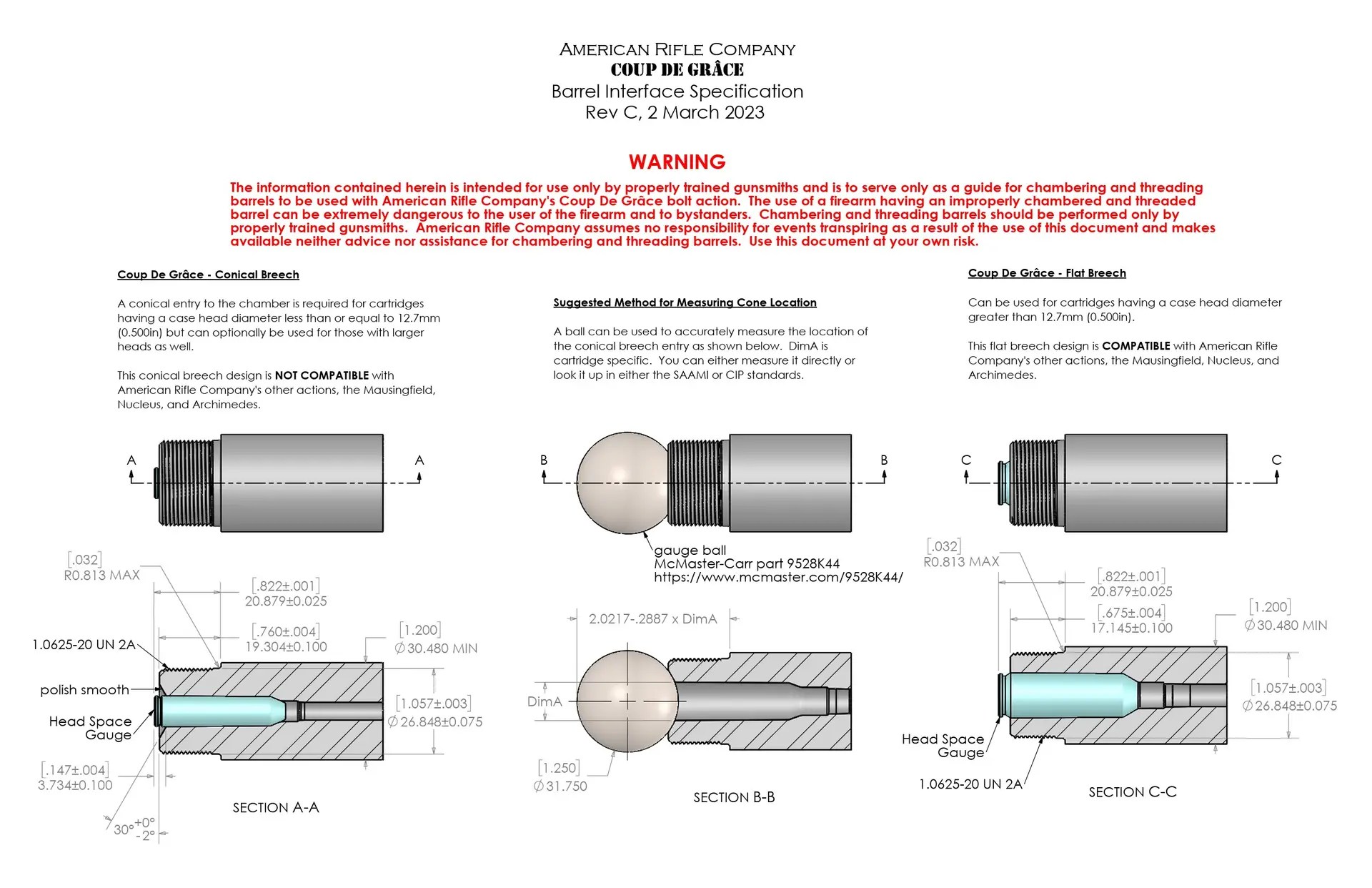

• 1.0625-20 UN 2B barrel thread
• Screw-adjustable trigger hanger
• AIAW optimized – no mag latch modifications necessary (short action)
• AICS compatible with optional forward hard stop piece (short action)
• AICS 3.850″/CIP magazine compatibility (long action)
• Long action AICS ONLY.
• 300 winmag and 338lm aw mags will not work and cannot be made to
• Robust, 9 o’clock bolt release
• Receiver-mounted passive (aka mechanical) ejector
• DLC Finish

Build your precision rifle around the Coup De Grâce Short Action Barreled Action and select the action handedness, bolt handle, bolt knob color, bolt knob style, caliber, and twist rate that best fit your intended application.

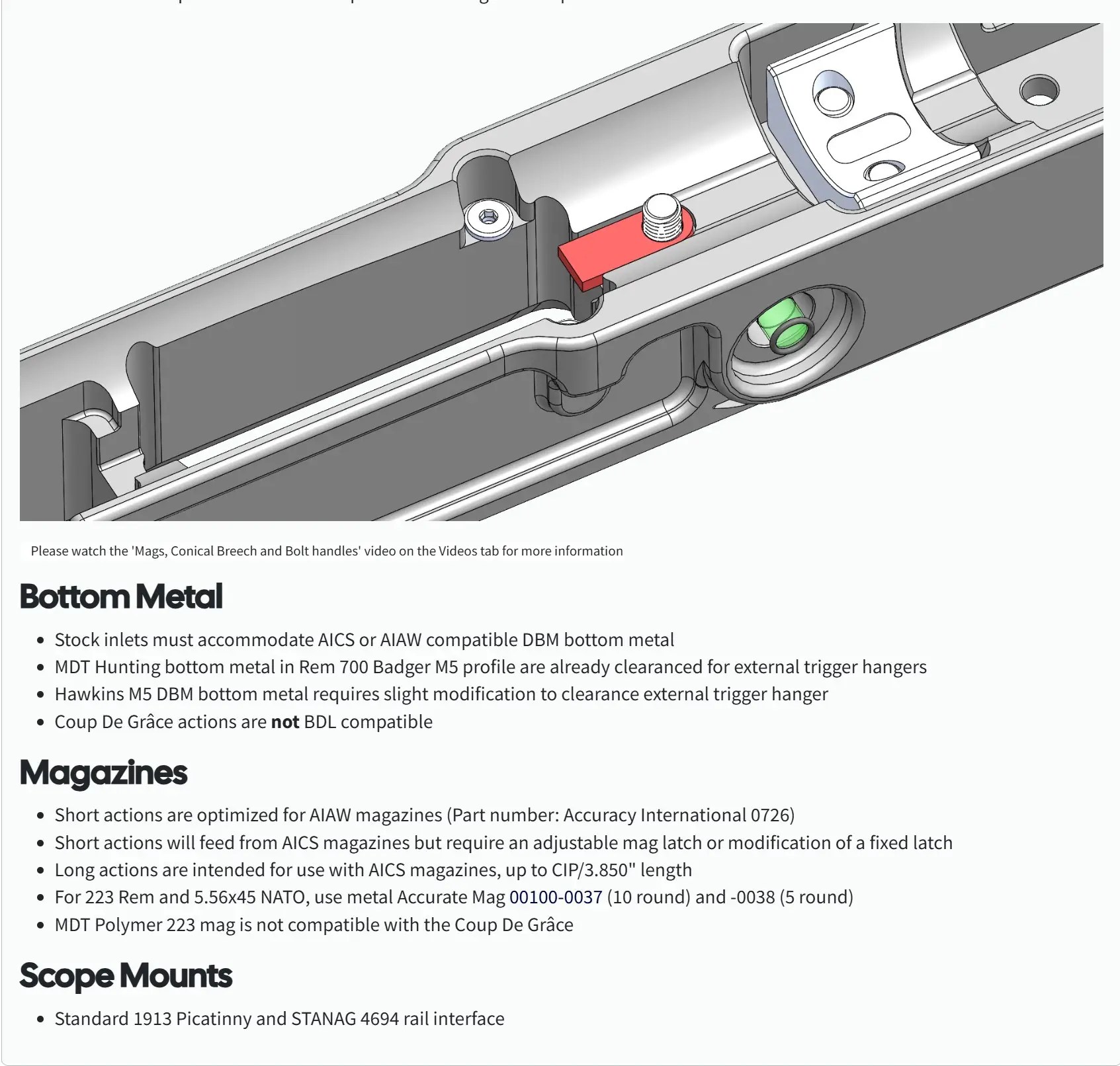

 The following applies to SHORT ACTIONS:

• Adjustable magazine latch is ideal to take advantage of dual AICS and AIAW mag compatibility
• AW magazines will fit a standard length magazine latch
• AICS magazines will require a shorter than standard magazine latch
• Clearance is required for use of the optional AICS magazine stop tab

Buyer Responsibility: Buyer is responsible for ensuring that the selected firearm component is legal to purchase, possess, and use in their jurisdiction. Three Oaks Tactical is not responsible for a buyer’s failure to comply with applicable federal, state, or local laws and regulations.

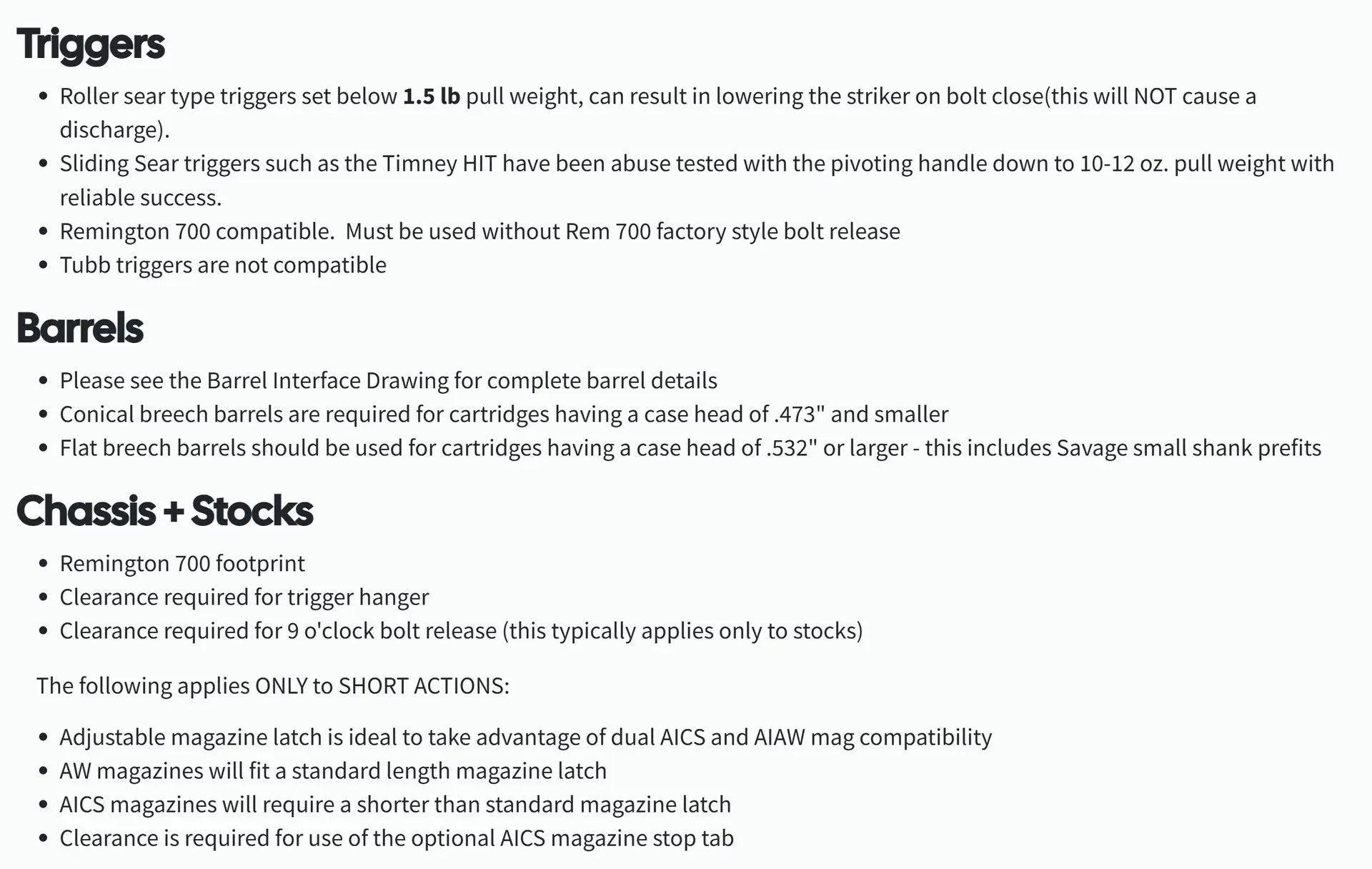

Ask about a trigger (Sold Seperately)

The following triggers are compatible with this action:

• TriggerTech Diamond, Rough Diamond
• Bix’n Andy  TACSport Pro

NOTE:

Only the barreled action is for sale here. The rifle in the photo is not for sale in this listing. The barreled action does not come with a muzzle brake.

Lead Times:

223 Wylde and 308 ship in 12-14 weeks

All others in 3 weeks or less
